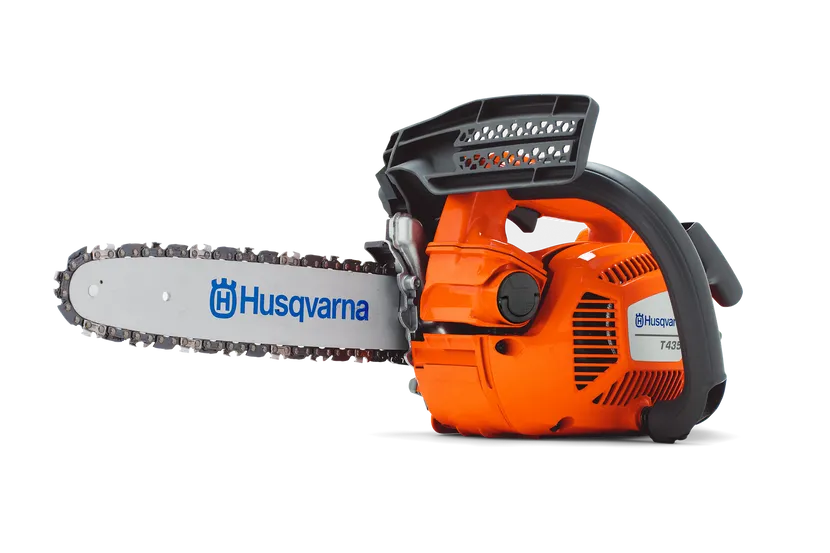

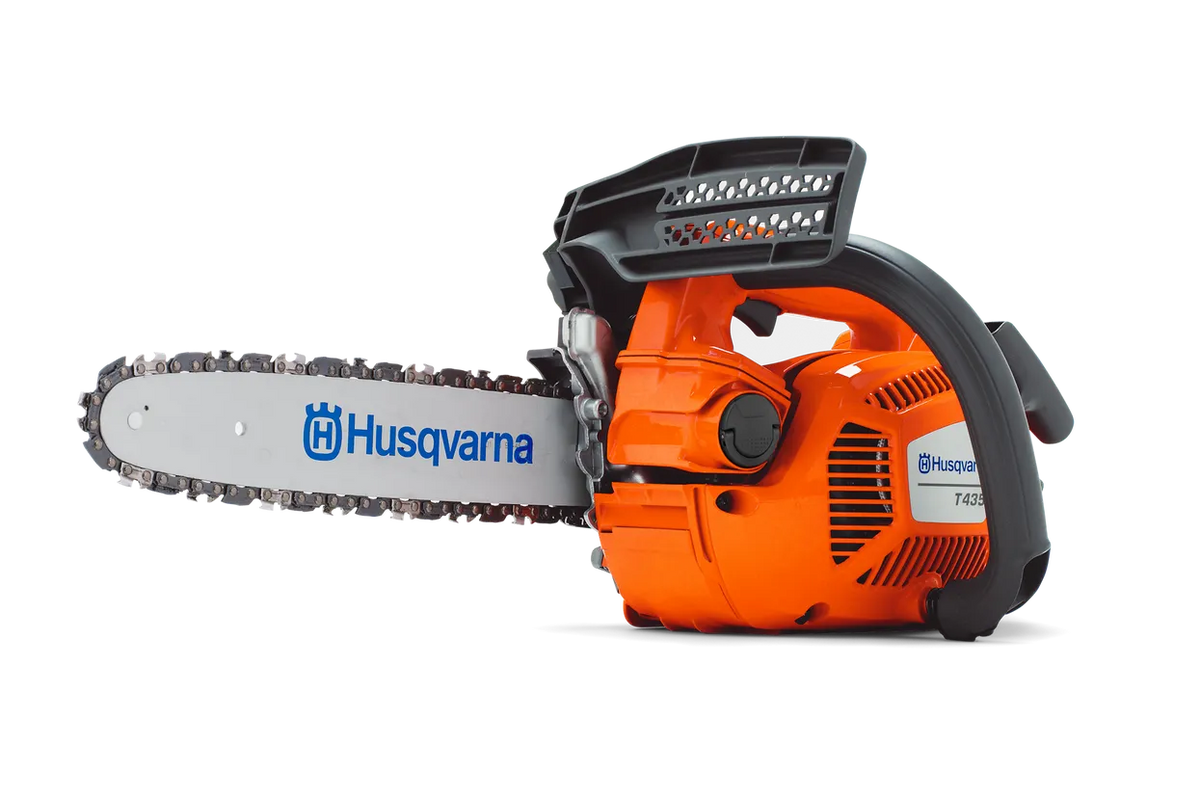

Husqvarna T435 Gas Chainsaw

Husqvarna

Mid-sized X-Torq® tree care saw. It´s a lightweight powerful chainsaw for pruning in parks as well as vineyards and fruit orchards. The low weight and well-balanced saw body makes it very easy to work with.

Features

Powerful and Efficient X-TORQ® Engine

X-Torq® engines deliver a great power and torque thanks to highly efficient combustion.

Adjustable Oil Pump

Customize and control oil flow to meet any need

Quick-Release Air Filter

Easily remove and replace the filter after cleaning

Side Chain Tensioning

Quickly and easily adjust the chain

Quick release air filter cover

Quick release cover saves time when cleaning or changing spark plug or filter.

LowVib® Technology

Dampeners between the engine and chassis significantly reduce vibrations so you can work more comfortably

Chain break window

Improved design allows for better visibility of the guide bar tip.

Rope attachment

A sturdy point for fastening a rope, making it easy to hoist the saw up into a tree.

Inertia-Activated Chain Brake

Reduces the likelihood of injury due to kickback.

Easier cold starting

Starting a cold engine requires less effort thanks to the air purge.

Flip-up tank cap

The flip-up tank cap is easy to open.

Smart Start® Technology

Specially-designed engine and starter for easy and fast starting with minimum effort

Specifications

Engine	T435	T435	T435	T435
Engine	Art no: 966 99 72‑34	Art no: 966 99 72‑03	Art no: 966 99 72‑32	Art no: 966 99 72‑36
Power output	2.01 hp	2.01 hp	2.01 hp	2.01 hp
Cylinder displacement	2.15 cu.inch	2.15 cu.inch	2.15 cu.inch	2.15 cu.inch
Maximum power speed	10,000 rpm	10,000 rpm	10,000 rpm	10,000 rpm
Max engine/motor	12,500 rpm	12,500 rpm	12,500 rpm	12,500 rpm
Idling speed	2,900 rpm	2,900 rpm	2,900 rpm	2,900 rpm
Torque, max.	1.57 Nm	1.57 Nm	1.57 Nm	1.57 Nm
Torque, max. at rpm	7,500 rpm	7,500 rpm	7,500 rpm	7,500 rpm
Clutch engagement speed (±120)	4,700 rpm	4,700 rpm	4,700 rpm	4,700 rpm
Fuel consumption	408 g/kWh	408 g/kWh	408 g/kWh	408 g/kWh
Spark plug	NGK CMR6H	NGK CMR6H	NGK CMR6H	NGK CMR6H
Electrode gap	0.03 in	0.03 in	0.03 in	0.03 in
Ignition module air gap	0.02 in	0.02 in	0.02 in	0.02 in
Oil pump type	Automatic	Automatic	Automatic	Automatic
Oil pump capacity Max	9 ml/min	9 ml/min	9 ml/min	9 ml/min
Oil pump capacity Min	3 ml/min	3 ml/min	3 ml/min	3 ml/min
Emission
Exhaust emissions (CO2 EU V)	860 g/kWh	860 g/kWh	860 g/kWh	860 g/kWh
Equipment
Bar length (inch)	14 in	12 in	12 in	16 in
Recommended bar length, min	12 in	12 in	12 in	12 in
Recommended bar length, max	14 in	14 in	14 in	14 in
Chain type	H37		H37	H37
Gauge	.050"	.050"	.050"	.050"
Pitch	3/8" mini	3/8" mini	3/8" mini	3/8" mini
Sprocket type	Spur 6	Spur 6	Spur 6	Spur 6
Dimensions
Weight (excl. cutting equipment)	7.5 lbs	7.5 lbs	7.5 lbs	7.5 lbs
Lubricant
Lubricant type	Husqvarna 2 stroke or equiv. at 50:1	Husqvarna 2 stroke or equiv. at 50:1	Husqvarna 2 stroke or equiv. at 50:1	Husqvarna 2 stroke or equiv. at 50:1
Oil tank volume	0.36 US pint	0.36 US pint	0.36 US pint	0.36 US pint
Oil tank volume	0.17 l	0.17 l	0.17 l	0.17 l
Sound and Noise
Sound power level, guaranteed (LWA)	114 dB(A)	114 dB(A)	114 dB(A)	114 dB(A)
Sound power level, measured	112 dB(A)	112 dB(A)	112 dB(A)	112 dB(A)
Sound pressure level at operators ear	103 dB(A)	103 dB(A)	103 dB(A)	103 dB(A)
Vibration
Equivalent vibration level (ahv, eq) front handle	3.6 m/s²	3.6 m/s²	3.6 m/s²	3.6 m/s²
Equivalent vibration level (ahv, eq) rear handle	3.9 m/s²	3.9 m/s²	3.9 m/s²	3.9 m/s²
