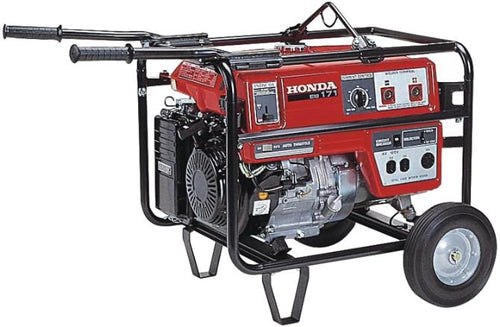

HONDA WELDER GENERATOR EW171


4 Hour (PRICE INCLUDES 50' OF LEAD AND 50' OF GROUND)- $85.00 USD
1 Day- $120.00 USD

Honda’s EW171 welder generator provides 171 amps of DC welding power with a 50-percent duty cycle in addition to 4000 watts of maximum AC power. This model offers standard Auto Throttle, two-wheel transport kit and is powered by Honda’s 11 horsepower OHV commercial GX engine.


Specifications

  • Honda EW171 Welder Generator
  • Engine: 11 HP, Single Cylinder, Overhead Valve, Air Cooled
  • Displacement: 337 cc
  • AC Output: 4000W max. (33.3A) 4000W rated (33.3A)
  • Receptacles: 20A 125V Duplex NEMA Plug Number: 5-20P 30A 125V Locking Plug NEMA Plug Number: L5-30P
  • DC Output: DC50-170A Welding 26.5V
  • Starting System: Recoil
  • Fuel Tank Capacity: 4.5 gallons
  • Run Time on One Tankful AC=5.2 hrs Weld = 7.5 hrs
  • Dimensions (L x W x H) (dimensions include 2-wheel kit) 40.9" x 26.4" x 30.7"
  • Noise Level AC 72 dB Weld 74 dB
  • Dry Weight 228 lbs.
