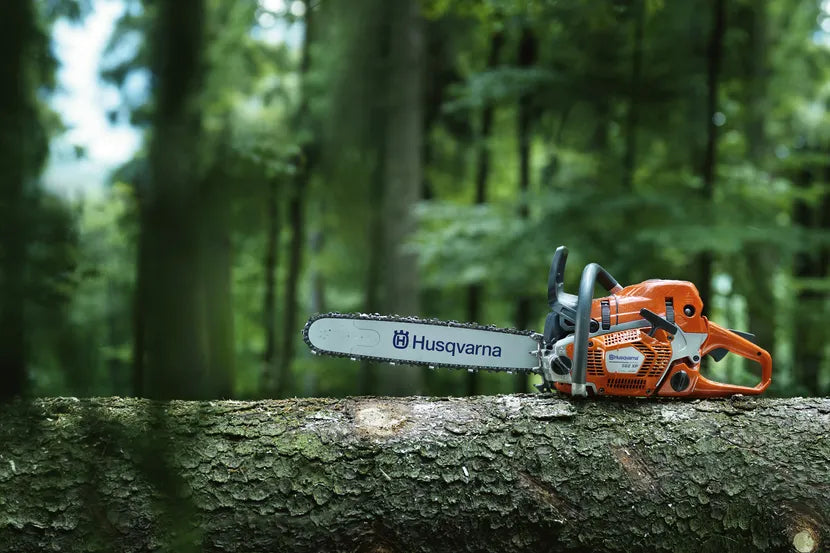

Husqvarna 562 XP® Gas Chainsaw

Husqvarna

High-performance professional 60cc chainsaw with heated handles and carb

Husqvarna 562 XP® is developed for professional loggers, tree care workers and skilled land owners. The saw has a ground breaking design and is loaded with innovative solutions for efficient, convenient operation with large air filter and the ability to fit 28" bars. Our unique X-Torq® engine technology provide more power where you need it, up to 20% less fuel consumption and 75% less exhaust emission.

Features

AutoTune

AutoTune gives optimal engine performance throughout automatic engine setting. No time spent on carburetor adjustments. It compensates for different fuels, altitude, humidity, temperature and clogged air filter.

Powerful and Efficient X-TORQ® Engine

X-Torq® engines deliver a great power and torque thanks to highly efficient combustion.

Air Injection™ Technology

Centrifugal air cleaning system expels larger dust and debris particles before they reach the air filter to help improve engine life

Flip-Up Fuel Cap

Easy to open and secures firmly, even when wearing thick gloves

Heated handles

Efficient heating coils in the front and rear handles make the saw more comfortable to use in cold and damp conditions.

Fast acceleration

Engine parts are designed to be low weight and optimized for faster acceleration.

Heated Carburettor

The electrical carburettor heating ensures reliable starting and operation in cold conditions.

LowVib® Technology

Dampeners between the engine and chassis significantly reduce vibrations so you can work more comfortably

Adjustable Oil Pump

Customize and control oil flow to meet any need

Quick-Release Air Filter

Easily remove and replace the filter after cleaning

Magnesium crankcase

Sturdily built crankcase withstands high rpms and tough professional use, ensuring a long service life.

Combined Choke/Stop Control

Provides easier starting and reduces the risk of engine flooding

Quick release air filter cover

Quick release cover saves time when cleaning or changing spark plug or filter.

Snap-Lock Cylinder Cover

Saves time when changing spark plugs and cleaning.

Three-Piece Crankshaft

Forged three-piece crankshaft delivers maximum durability for even the toughest of jobs

Side-Mounted Chain Tensioner

Easier access to chain tensioning device.

Slimmed-down design

Low, slender saw body makes the chainsaw easy and convenient to handle in any situation.

Felling marks

Distinct, colored marks used for aiming the direction of timber fall.

Fuel Indicator

Transparent fuel indicator makes it easy to check fuel level

Smart Start® Technology

Specially-designed engine and starter for easy and fast starting with minimum effort

Inertia-Activated Chain Brake

Reduces the likelihood of injury due to kickback.

Quick Start with Air Purge

Air purge removes air from carburetor and fuel system for easy starting

Retained bar nuts

The retaining function prevents loosing the bar nuts.

Specifications

Engine	18" RSN 3/8" 1,5 mm C85 SKU: 970 50 22‑02	20" RSN 3/8" 1,5 mm C85 SKU: 970 50 22‑04	20" RSN 3/8" 1,3 mm C83 SKU: 970 50 22‑12	24" US Lightweight RSN 3/8" 1,3 mm C83 SKU: 970 50 22‑54
Chain speed at max power	69.9 fts	69.9 fts	69.9 fts	69.9 fts
Cylinder displacement	59.8 cm³	59.8 cm³	59.8 cm³	59.8 cm³
Output shaft power¹	4.7 hp	4.7 hp	4.7 hp	4.7 hp
Torque, max.	3.65 Nm	3.65 Nm	3.65 Nm	3.65 Nm
Torque, max. at rpm	8,100 rpm	8,100 rpm	8,100 rpm	8,100 rpm
Clutch engagement speed (±120)	4,300 rpm	4,300 rpm	4,300 rpm	4,300 rpm
Electrode gap	0.02 in	0.02 in	0.02 in	0.02 in
Idling speed	2,800 rpm	2,800 rpm	2,800 rpm	2,800 rpm
Ignition module air gap	0.01 in	0.01 in	0.01 in	0.01 in
Maximum power speed	9,600 rpm	9,600 rpm	9,600 rpm	9,600 rpm
Spark Plug	NGK CMR6H	NGK CMR6H	NGK CMR6H	NGK CMR6H
Equipment
Recommended bar length, min	15 in	15 in	15 in	15 in
Pitch	3/8"	3/8"	3/8"	3/8"
Recommended bar length, max	28 in	28 in	28 in	28 in
Chain type	C85	C85	C83	C83
Bar length	45 cm	50 cm	50 cm	60 cm
Bar length (inch)	18 in	20 in	20 in	24 in
Gauge		.058"
Dimensions
Weight (excl. cutting equipment)	13.9 lbs	13.9 lbs	13.9 lbs	13.9 lbs
Sound and noise
Sound pressure level at operators ear	106 dB(A)	106 dB(A)	106 dB(A)	106 dB(A)
Sound power level, guaranteed (LWA)	118 dB(A)	118 dB(A)	118 dB(A)	118 dB(A)
Sound power level, measured	116 dB(A)	116 dB(A)	116 dB(A)	116 dB(A)
Vibration
Equivalent vibration level (ahv, eq) rear handle	5 m/s²	5 m/s²	5 m/s²	5 m/s²
Equivalent vibration level (ahv, eq) front handle	3.2 m/s²	3.2 m/s²	3.2 m/s²	3.2 m/s²
Lubricant
Oil tank volume	0.7 US pint	0.7 US pint	0.7 US pint	0.7 US pint
Lubricant type (Engine)	Husqvarna 2 stroke or equiv. at 50:1	Husqvarna 2 stroke or equiv. at 50:1	Husqvarna 2 stroke or equiv. at 50:1	Husqvarna 2 stroke or equiv. at 50:1
Emission
Exhaust emissions (CO₂ EU V)²	777 g/kWh	777 g/kWh	777 g/kWh	777 g/kWh
